ICL8038 Function Generator

Excellent Chinese kit of a function generator based on the ICL8038 IC.

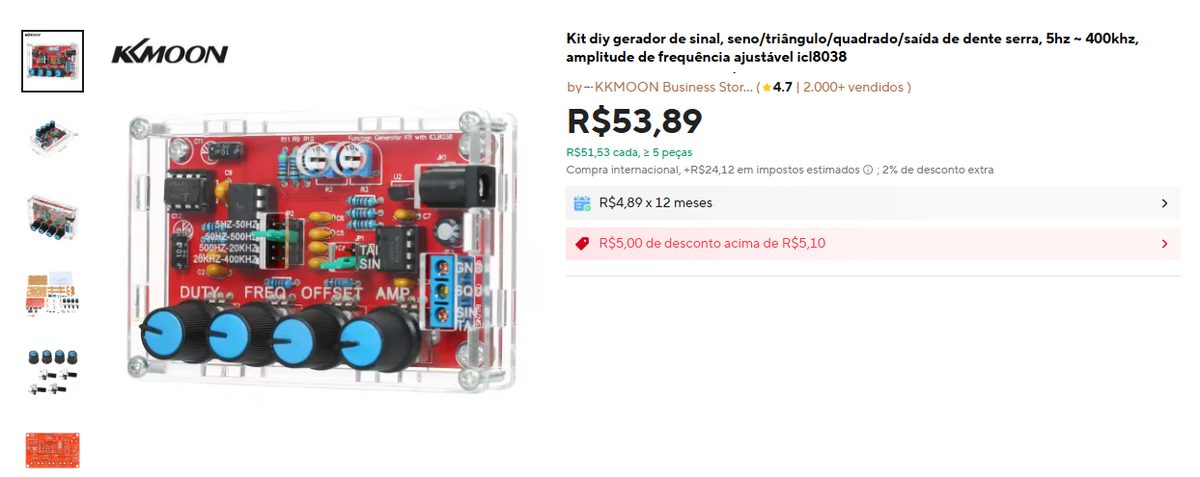

ICL8038 function generator kit for sale on AliExpress

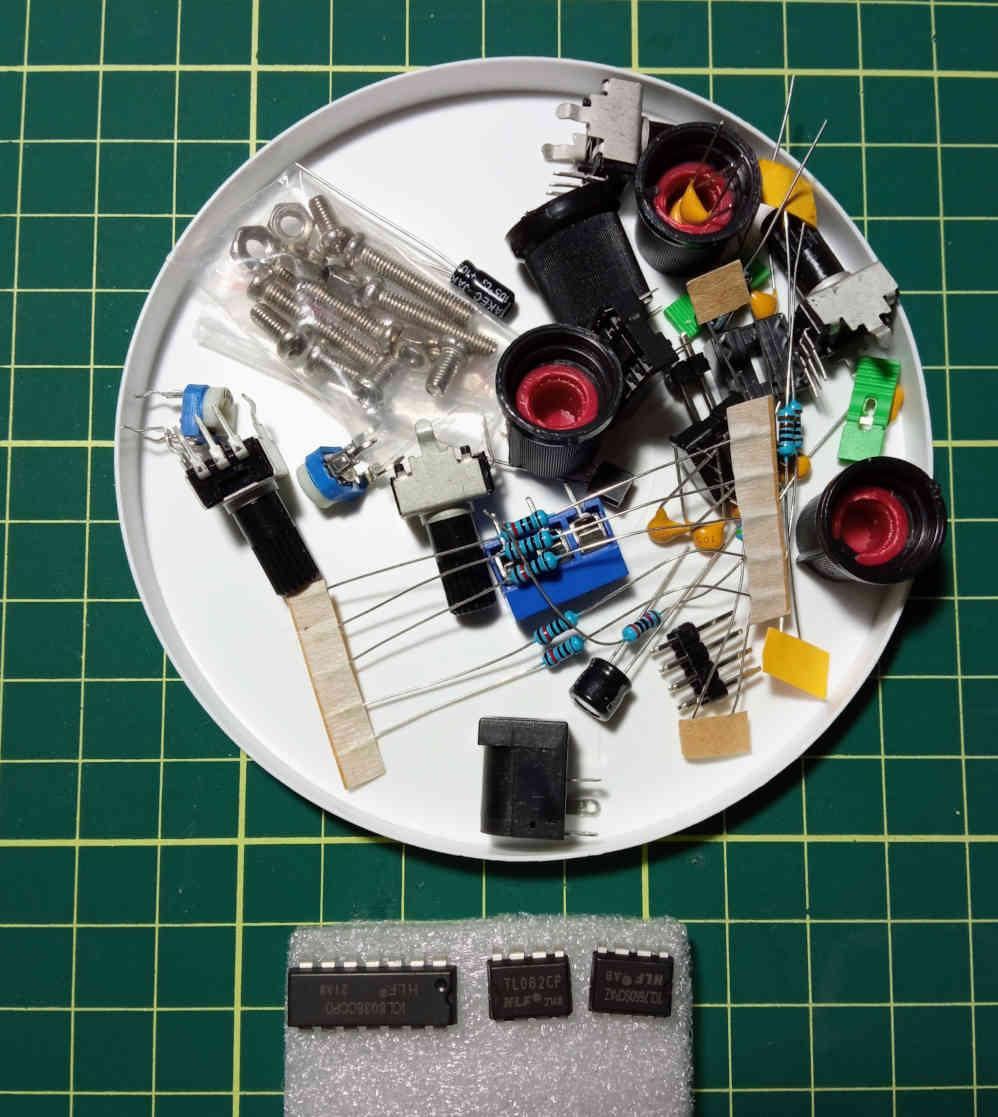

ICL8038 kit assembly, photo 1

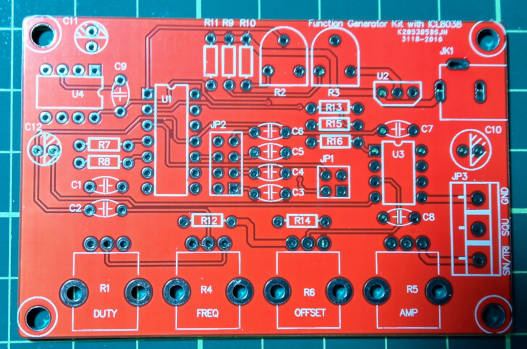

ICL8038 kit assembly, photo 2

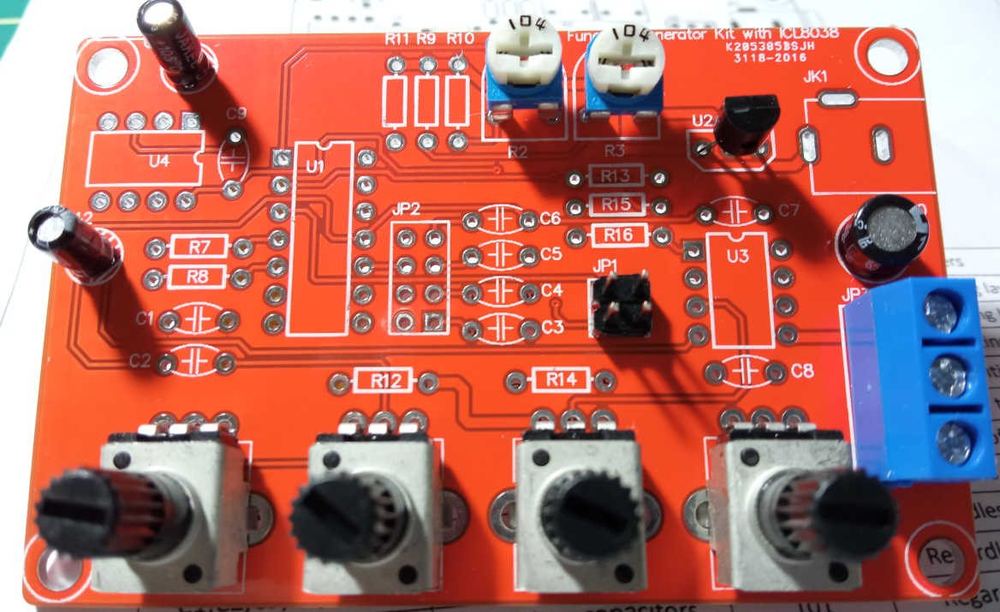

ICL8038 kit assembly, photo 3

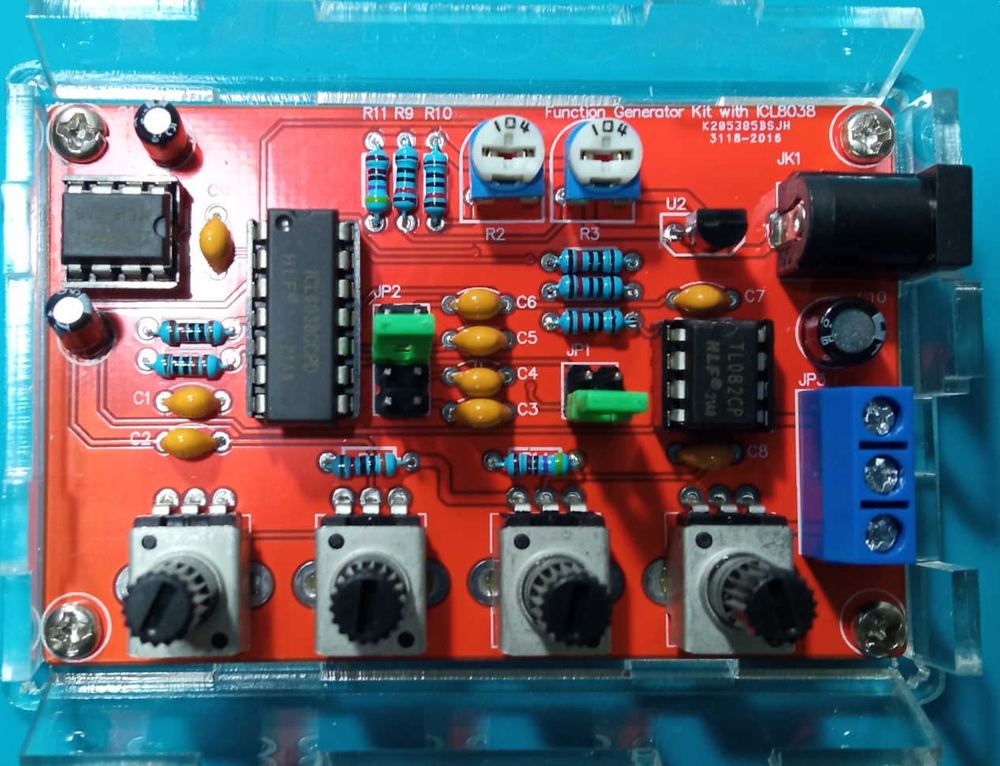

ICL8038 kit assembly, photo 4

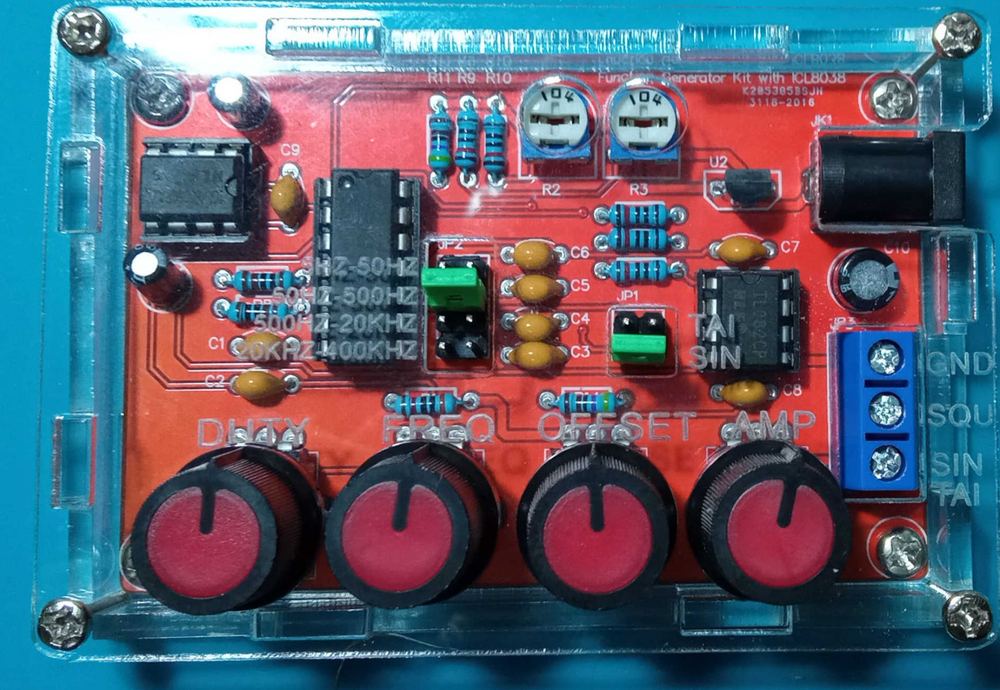

ICL8038 kit assembly, photo 5

It has quite interesting characteristics, such as an operating frequency from 5 Hz to 400 kHz and offset, duty cycle, amplitude and frequency adjustments. The operating range is selected with a jumper, which is not a problem for my occasional use. There is one square wave output and another selectable between triangle and sine.

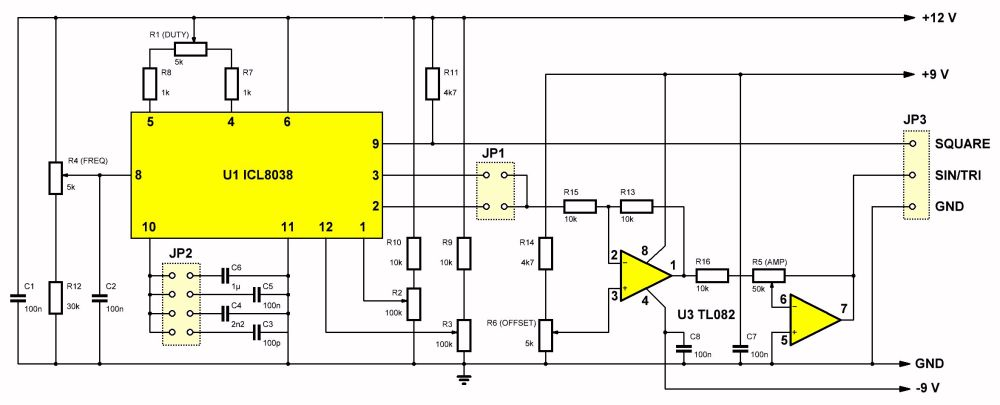

ICL8038 function generator schematic

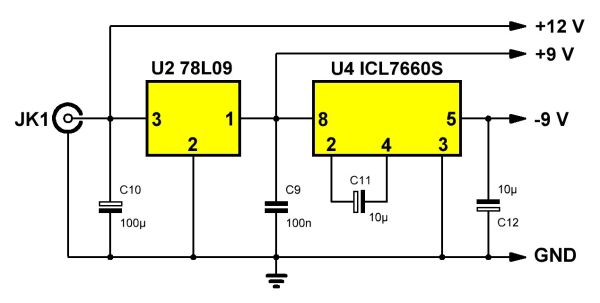

Symmetric supply schematic (±9 V)
